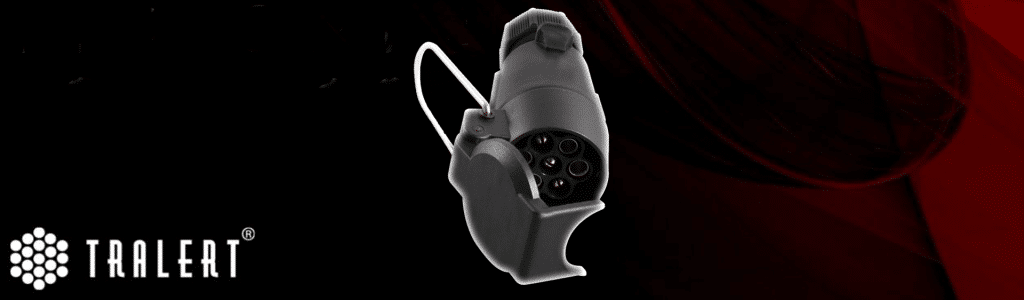

7-PIN socket connector

Contents

What is a mating connector?

Definition

A 7-PIN Contra-plug is a contact housing into which a connector can be inserted. This way, you can easily supply your electrical appliances with power. There are also sockets you can use to provide your appliance or extension cable with protective earth. With TRALERT® mating plugs you guarantee a solid physical and electrical connection. The connectors are easy to use and simple to disconnect. Fit them and simply insert the connector of your device into the mating plug.

7-PIN Counter Connector

What materials does a mating connector consist of?

You’re probably wondering what materials are available. Well, there are rubber connectors and sockets from ABL. They prevent moisture ingress and are ideal for outdoor use. The rubber plugs are suitable for 1.5 mm² and 3×2.5 mm² conductors. You can connect up to three cables of 1.5 mm² or 3×2.5 mm² to the connector. The connector is earthed and suitable for voltages up to 250 V and currents of 16 amps. Are you looking for a connector or counter-connector made of plastic or PVC? Feel free to browse our range. We offer, amongst other things, plastic connectors with earth contact or PVC connectors with earth contact from ABL. In addition, counter-plugs are available. The 7-PIN counter-plugs are suitable for a voltage of up to 230 Volts and a current of 16 amps. The large connection compartment makes it easy to connect cables to the terminal block.

What is this connector suitable for?

The 7-PIN connector is ideal for extending the cable between the connector and the original junction box. The metal hook secures the free-hanging counter plug, preventing it from falling to the ground. The 7-PIN connector is suitable for trailers or caravans. It is fitted with a sealing flap and a bracket. The connector supplies the trailer with basic lighting such as indicators, brake lights and fog lights. The additional pins on the 13-PIN connector are used, amongst other things, for the reversing lights and for continuous power supply.
