6-pole connector

Contents

Definition

The‘6-PINbayonet connection’ is also known as a ‘6-pin connector’. This connection is mainly found on Fristom lighting. The connector is very similar to the widely used Aspöck variant with 5-PIN or 7-PINconfigurations. However, only six pins are used within this connector . Bayonet connectors provide waterproof connections between cables and (LED) lighting. Using a twist mechanism incorporated into the exterior of the connector , you can lock the connection pins together. This ensures a current-conducting connection. The 6-pin connector is relatively rarely used. For example, the connection cannot be used on boat semi-trailers.

What does the scheme of the 6-pole connector look like?

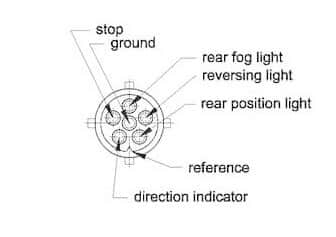

Scheme 6-pole connector

What functions can you find in the 6-pole connector?

The connection actually includes all the functions you’d expect from a 5-pin, 7-PIN or 8-pin connector. This means you’ll find a PIN for your brake light, your mass, your rear fog light, your reverse light and , of course, your indicator and position light.

What is the difference between the 5-pole and the 6-pole?

The difference between the 5-pin and 6-pin connectors is the licence plate light. When using a light that supports 6 pins, you will need to ensure you have a wiring harness that is compatible with this. In many cases, this wiring harness has one side where the 6 pins are used. On the other side, you will find the 5-pin connection in these cases. Please check carefully whether this is the right or left side. This way, you can be sure that you are installing your lighting correctly.

Some models available from TRALERT® that feature this connector include the 500 series rear lights and the 3300 triangular lights. These are both Fristom models that incorporate this connector as standard at the rear of the light. You can see an example of the 500 series rear light with this connection in the image below.

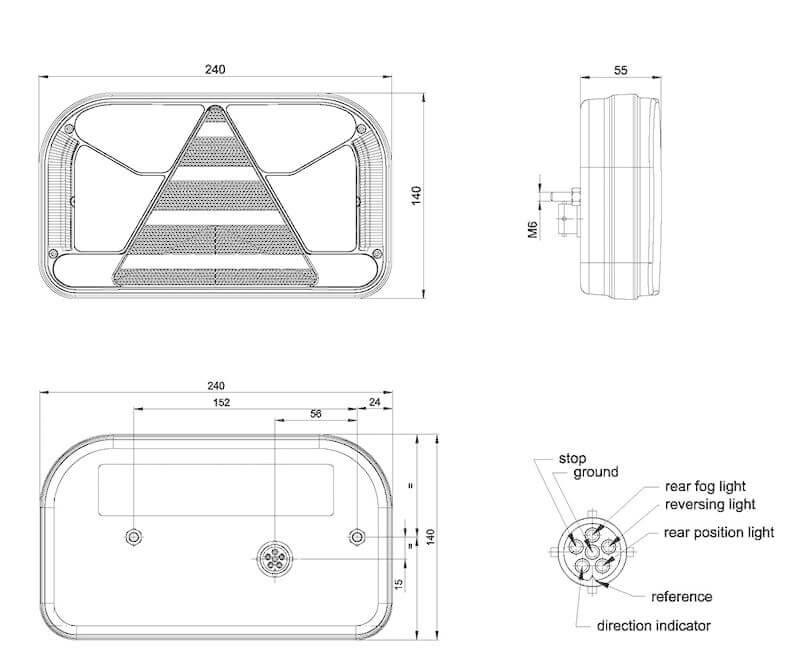

500 Series rear lights - technical drawing with 6-pole connection (rear)

Would you like to find out more about connectors and how to use them? Then get in touch with our lighting specialists. They’ll be happy to help you find the right connection for your trailers. A handy tip is to always apply a little grease, such as copper grease, to the connector . This makes the connector more water-resistant. Even if you’d like to know more about matching wiring harnesses, you can get in touch with TRALERT® specialists. We’d be happy to produce bespoke wiring harnesses for you to ensure your vehicles are optimally equipped with durable, high-quality connections.
