LED rear lights

Combine style and functionality with TRALERT®’s LED rear lights. The most attractive designs, the highest build quality and equipped with all the features you need.

You choose the right rear light based on light functions, size, connection type and approval. Existing cabling and mounting points are also important. In addition to our own TRALERT® series, you’ll find various reputable brands for replacement parts and vehicle construction.

Rear lights for trucks, trailers and utility vehicles

For trucks and trailers , you will often be replacing a rear light within an existing installation. You should therefore check the fitting dimensions, mounting points and connections.

Commonly used connections include an open wire end, a 5- or 8-pin bayonet connection and a 7-pin AMP-connector. A suitable connection prevents unnecessary modifications to the cabling.

Rear lights on commercial vehicles are exposed to moisture, de-icing salt, dirt, vibrations and intensive cleaning. Models with an IP69K rating offer protection against high-pressure hot-water cleaning.

See also our lighting for trucks, lighting for semi-trailers and solutions for agricultural machinery. For lighter combinations, you’ll find more information under rear lights for trailers.

What functions does an LED rear light have?

An LED rear light unit can combine a rear light, brake light, indicator, rear fog light, reverse light and licence plate light. Multiple functions in a single unit reduce the number of individual lights and cable entries.

Specific requirements apply to the installation and wiring of rear lights. Read more about this in the regulations for rear lights. Also take a look at the difference between brake lights and rear lights.

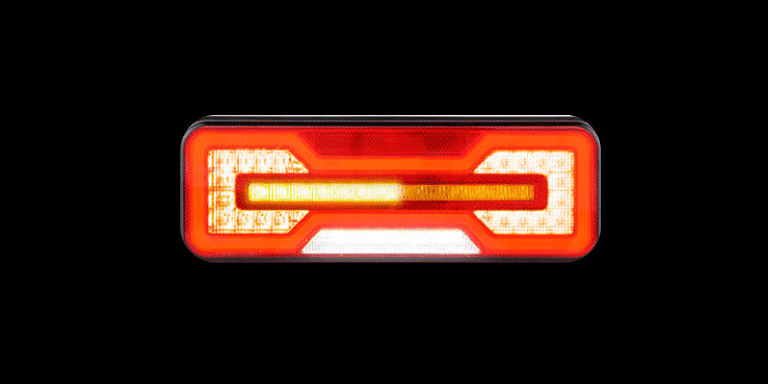

Various series models feature a dynamic indicator light. Take a look at our LED rear lights with a dynamic indicator light.

Shape and mounting dimensions

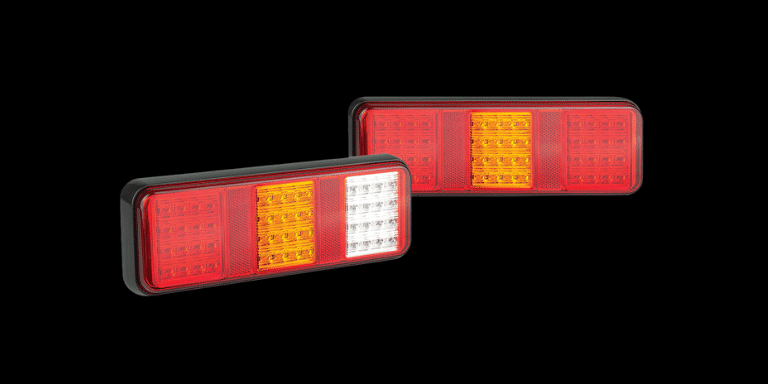

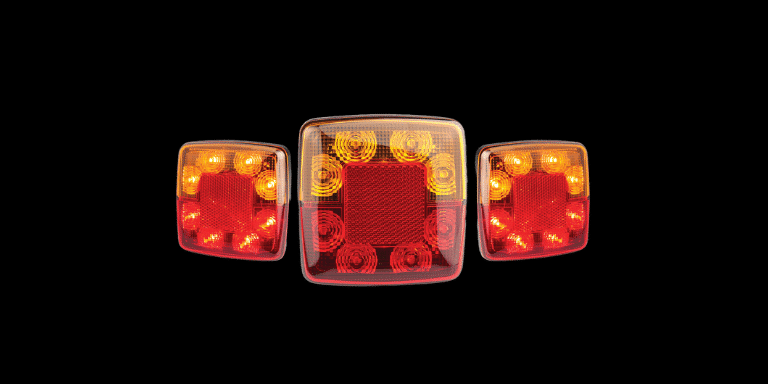

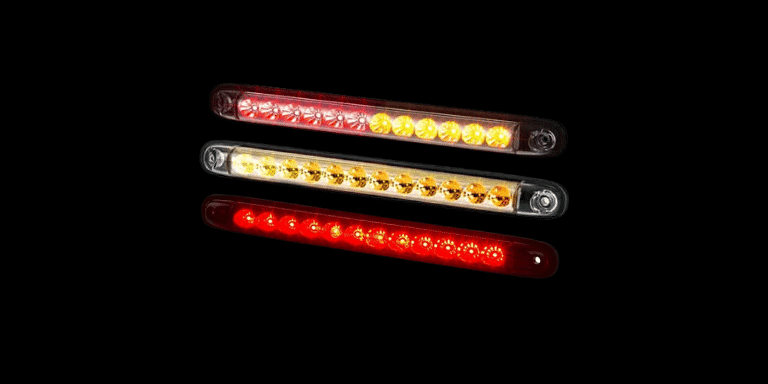

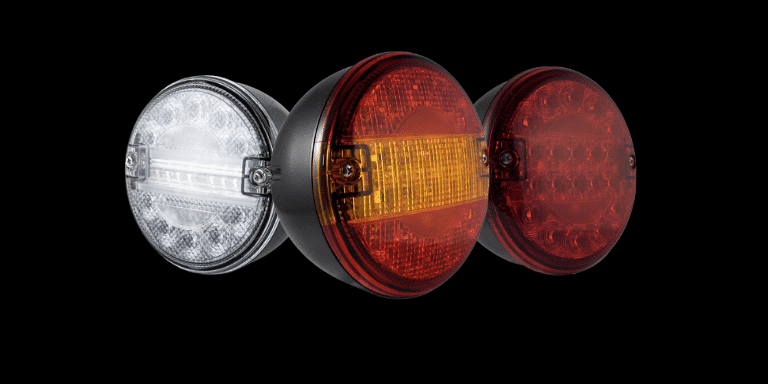

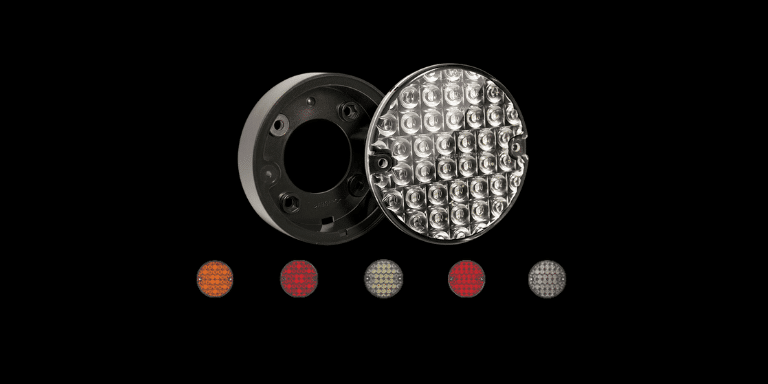

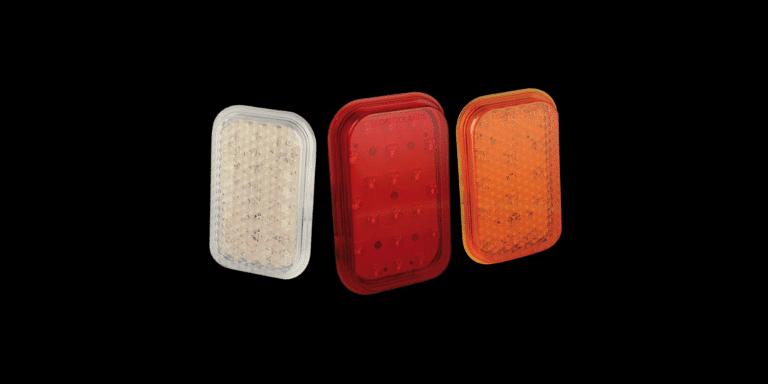

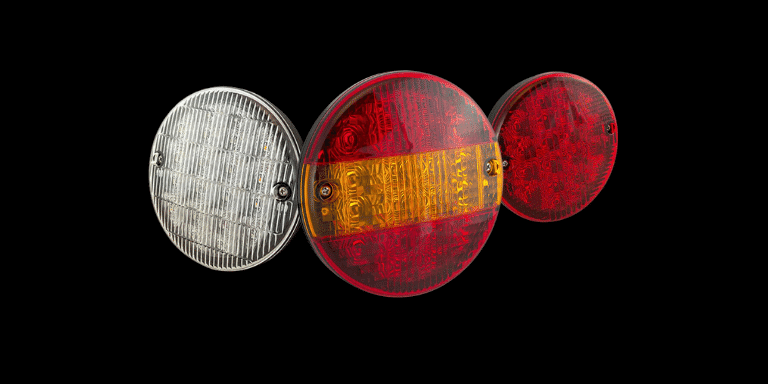

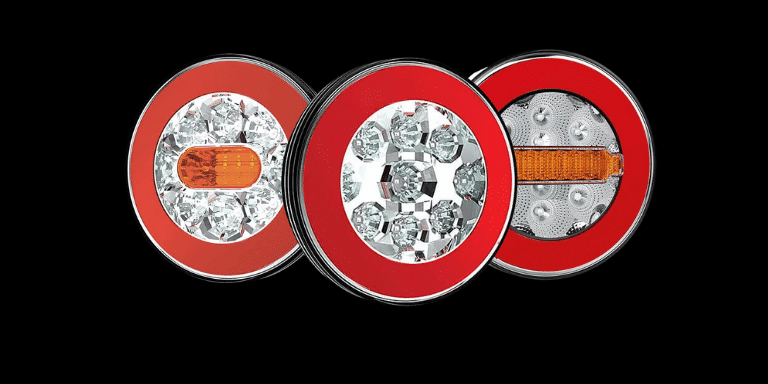

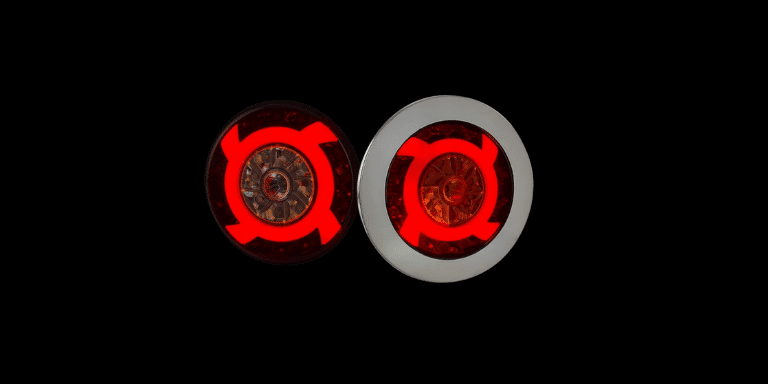

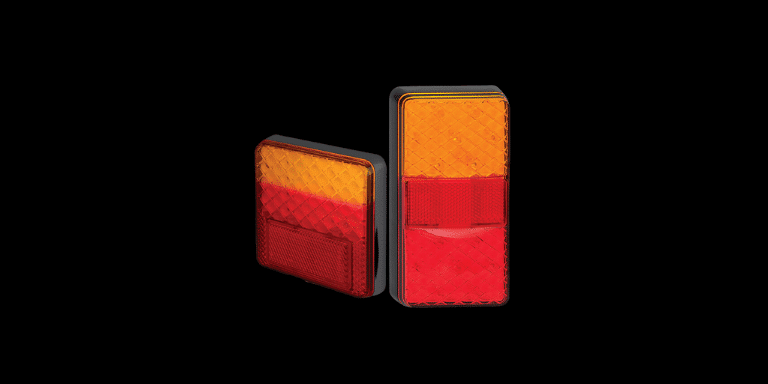

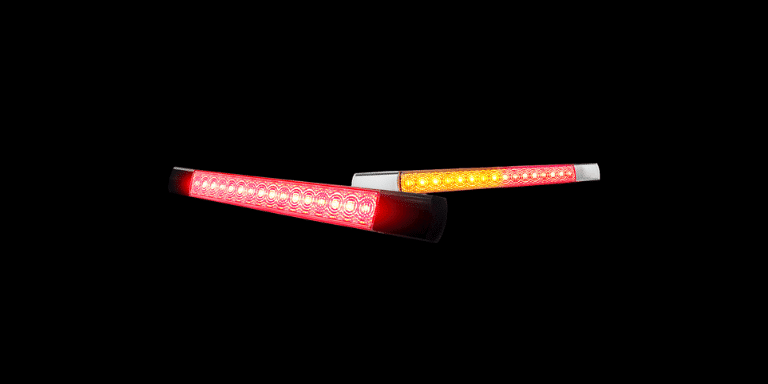

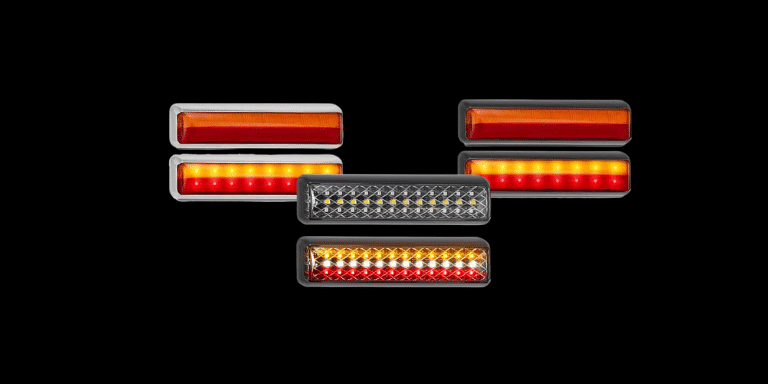

Round rear lights, also known as ‘hamburger lights’, are commonly found on trailers, trucks and work vehicles. Square and rectangular units often combine multiple light functions within a compact housing. Oval, triangular and slimline versions are also available.

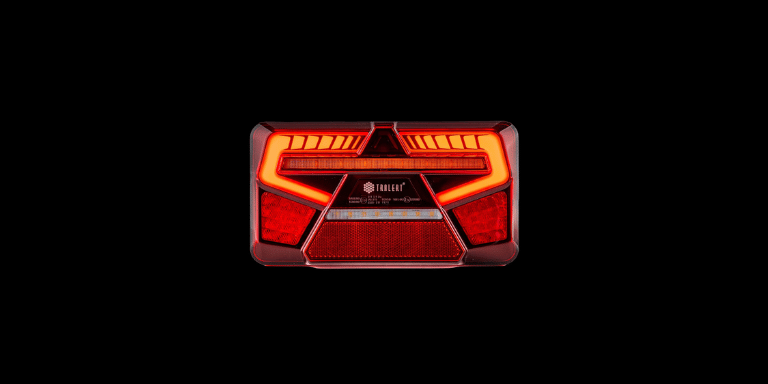

Before purchasing, always measure the height, width, installation depth and the centre-to-centre distance of the mounting points. Also take a look at the most common shapes of LED rear lights and the modern VC-6000 serie.

12V, 24V and CAN-bus

Always check the vehicle’s voltage. Trucks and semi-trailers usually operate on 24V, whilst commercial vehicles and trailers often use 12V. A 12–24V rear light supports both voltages.

In modern vehicles, the low power consumption of LED lighting can trigger a fault warning. A CAN-bus-compatible solution or additional module may therefore be required.

Please also note the cable length and connector type. For complete installations, see our range of cabling.

Approval and fitting

LED rear lights for use on public roads must comply with the applicable approval requirements. UN R148 covers various light signalling functions, including rear lights, brake lights, indicators, rear fog lights and reverse lights. UN R150 applies to retro-reflective devices.

You can find further background information in our explanation of ECE regulations.

The mounting on the vehicle must also be correct. UN R48 sets out requirements regarding, amongst other things, mounting height, distance, visibility and switching. An approved rear light therefore does not automatically mean that any mounting is permitted.

You may also come across a ‘D’ marking on certain configurations. Additional requirements apply to vehicles transporting dangerous goods. Read more about ADR and vehicle lighting.

Choose the right LED rear light

Before making your choice, please check the voltage, functions, dimensions, mounting, connection and any required approvals. This will help you avoid unnecessary modifications during mounting.

TRALERT® supports vehicle manufacturers, wholesalers, workshops and fleet managers with a wide range of professional LED vehicle lighting. Explore the possibilities at our Experience Centre or contact our specialists.
