Lightbar Shadow     Lightbar Spartan    Lightbar Skytrack

TRALERT® Skytrack

The new generation of Slimline Lightbars.

Now available

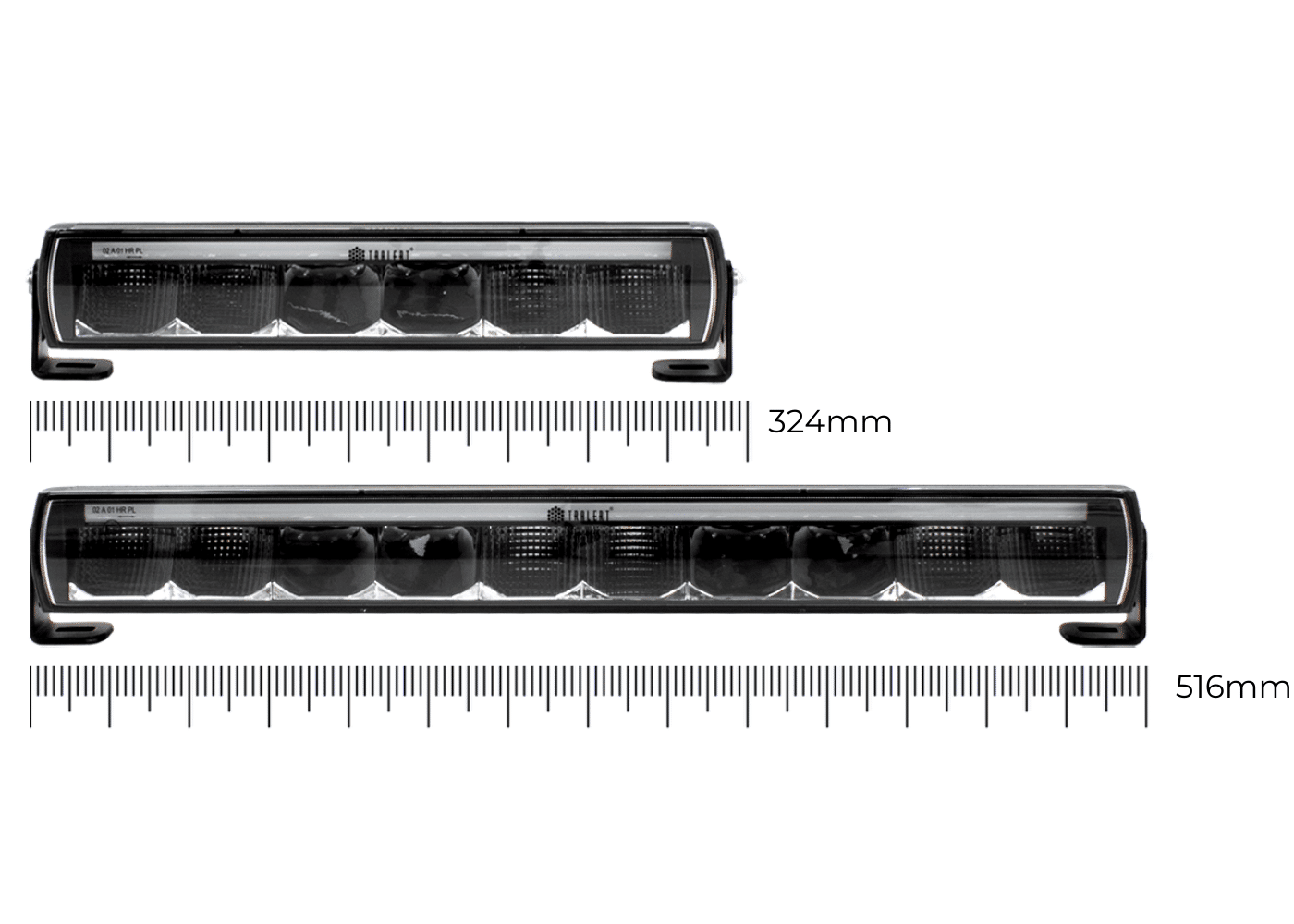

The TRALERT® Skytrack Lightbars are available in two different versions. Skytrack 1 (324 x 58 x 81mm) and Skytrack 2 (516 x 58 x 81mm).

Illuminating metres away? No
problem for Skytrack

Both versions of the Skytrack Lightbars are equipped with a duo-colour standlight and a powerful driving beam to illuminate metres away.

Parking light wit
Parking light wit
Driving Beam

The Skytrack ‘320mm

The Skytrack ‘512mm

Choose the power of Geminus Lightbars.

Light distribution, sometimes you just need a little extra light in the dark. So choose between an R112 certified light beam, or the Xtreme light beam.

Which Lightbar is suitable for your vehicle?

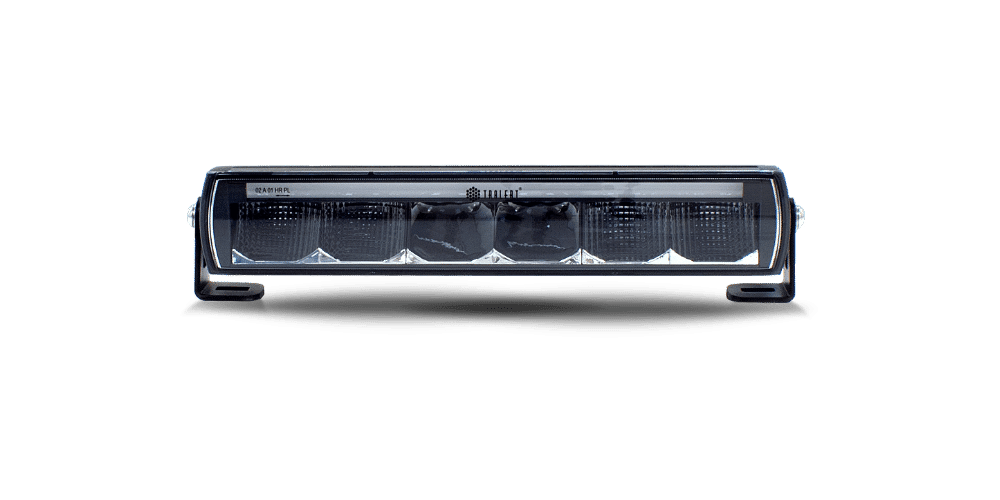

The Skytrack ‘320mm

The compact version of the Skytrack light bars. Powerful aluminium housing with protective coating. Perfect for both recessed and surface mounting. Skytrack is equipped with the well-known RFT lens for more efficient light distribution and has an amber/white standlight. Skytrack comes standard with 2 mounting brackets, side mounting and rear/under mounting.

Materials

The housing, frame and mounting brackets are made of high quality aluminium;

The design of Skytrack includes aluminium heat conductors on the back for thermal management;

The aluminium parts are coated for extra protection against rust, corrosion and freezing;

Internally, it uses ETM (Electronic Thermal Management) for temperature control;

The lens protection, is made of Lexan Polycarbonate for scratch & damage protection;

The build quality is dust and waterproof and shock and UV resistant.

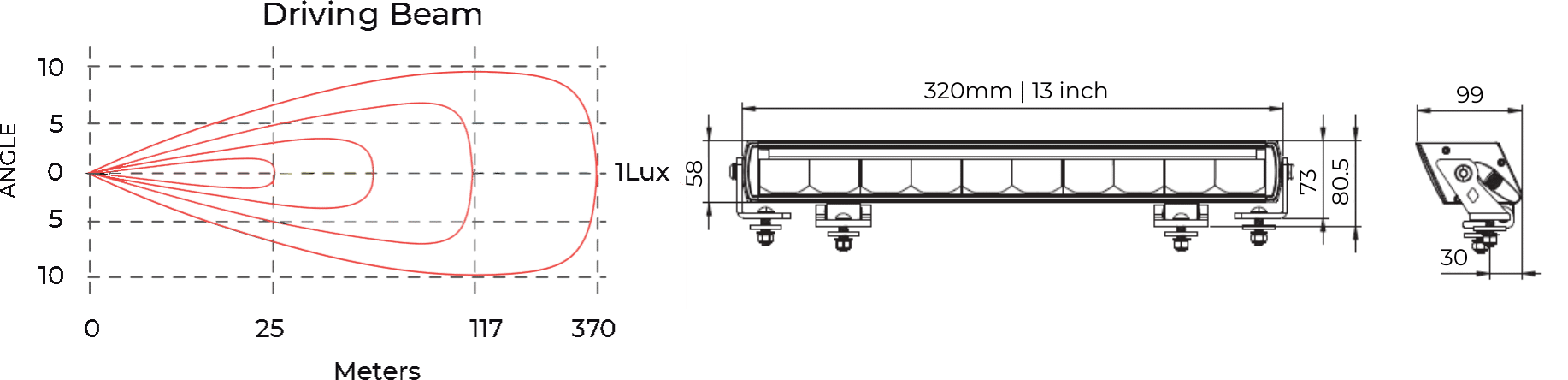

Light Pattern

RFT lens for a well-distributed light spread for the driving beam;

5,700 lumens combined with the RFT lens provide a light range of over 459 metres;

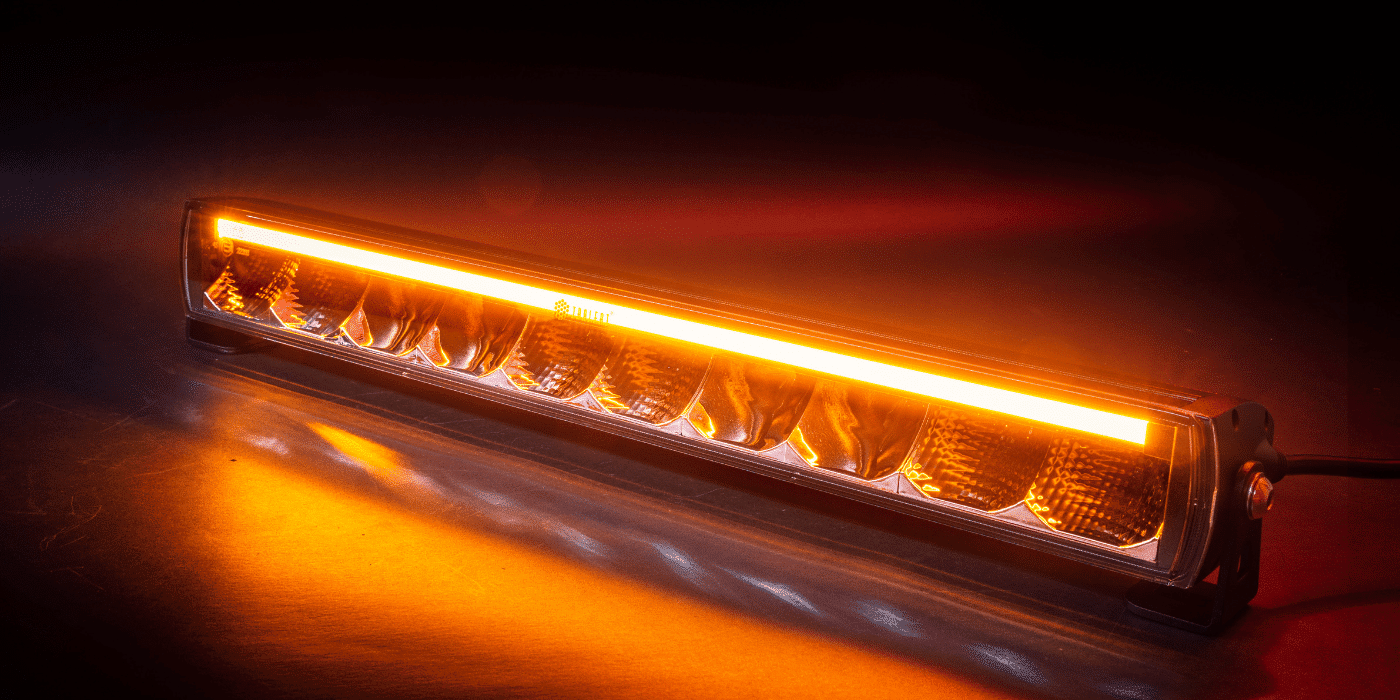

Equipped with high-visibility Amber / White standlight;

LED modules, 6x 10W, have a lifetime of 50,000+ hours.

Certificates

ECE-R112, so can be used officially as main beam;

ECE-R7, for the white colour of standlight;

ECE-R10, so as not to interfere with your vehicle;

CE label, for the protection of the European buyer;

E-Certification, for official use on the road;

IP68, water and dust resistant;

IP69K, High-pressure jet resistant.

Voltage | Wattage

9 - 36 volts, multivoltage support;

Voltage protection, high voltage;

60 Watt energy consumption.

Power consumption: 12 volts / 4.1A - 24 volts / 2.1A.

Connection | dimension

Standard equipped with 4P Deutsch-Connector;

Optional: 3-metre cable;

Dimensions: 320 x 58 x 99 mm.

Warranty

2-year warranty

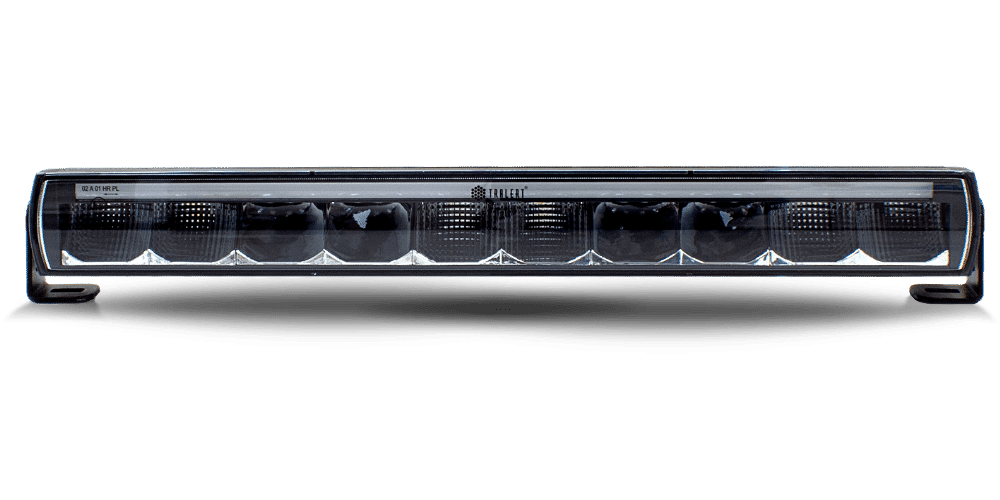

The Skytrack ‘512mm

The large version of the Skytrack light bars. Powerful aluminium housing with protective coating. Perfect for both recessed and surface mounting. Skytrack is equipped with the well-known RFT lens for more efficient light distribution and has an amber/white standlight. Skytrack comes standard with 2 mounting brackets, side mounting and rear/under mounting.

Materials

The housing, frame and mounting brackets are made of high quality aluminium;

The design of Skytrack includes aluminium heat conductors on the back for thermal management;

The aluminium parts are coated for extra protection against rust, corrosion and freezing;

Internally, it uses ETM (Electronic Thermal Management) for temperature control;

The lens protection, is made of Lexan Polycarbonate for scratch & damage protection;

The build quality is dust and waterproof and shock and UV resistant.

Light Pattern

RFT lens for a well-distributed light spread for the driving beam;

9,500 lumens combined with the RFT lens provide a light range of over 577 metres;

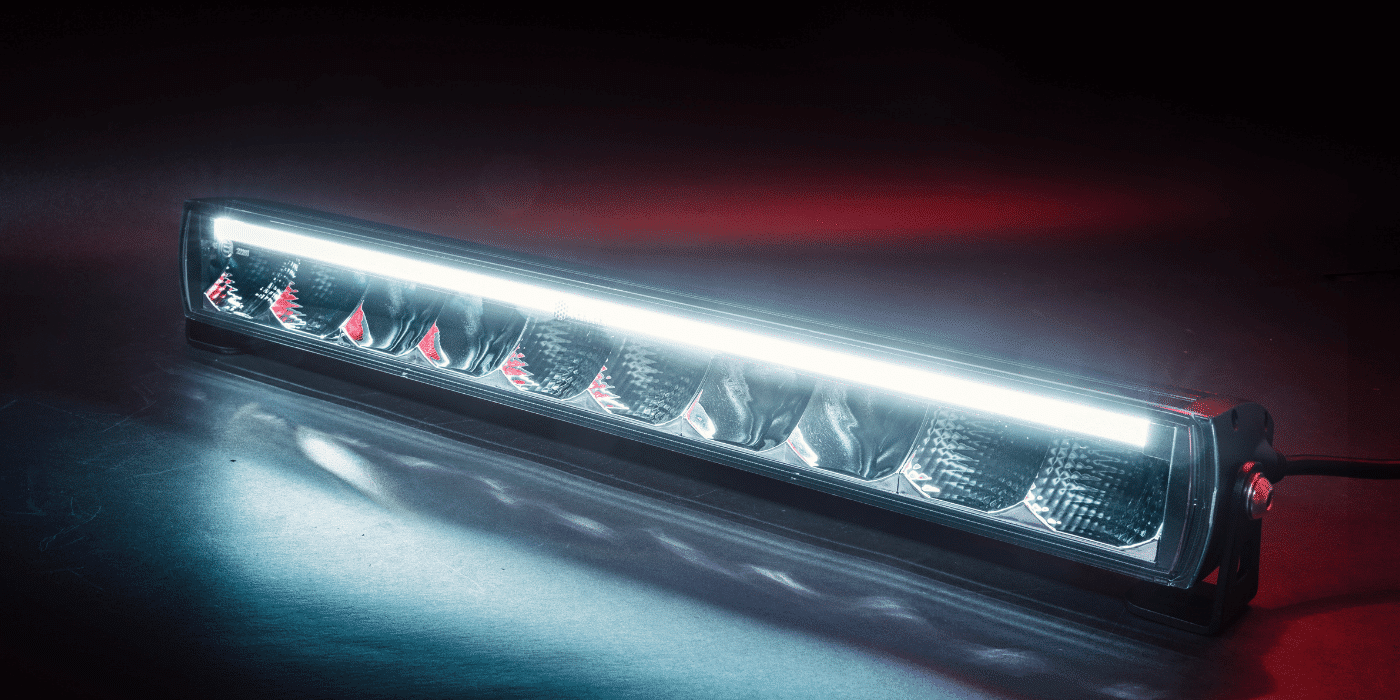

Equipped with high-visibility Amber / White standlight;

LED modules, 10x 10W, have a lifetime of 50,000+ hours.

Certificates

ECE-R112, so can be used officially as main beam;

ECE-R7, for the white colour of standlight;

ECE-R10, so as not to interfere with your vehicle;

CE label, for the protection of the European buyer;

E-Certification, for official use on the road;

IP68, water and dust resistant;

IP69K, High-pressure jet resistant.

Voltage | Wattage

9 - 36 volts, multivoltage support;

Voltage protection, high voltage;

100 Watt power consumption;

Power consumption: 12 volts / 6.5A - 24 volts / 3.3A.

Connection | dimension

Standard equipped with 4P Deutsch-Connector;

Optional: 3-metre cable;

Dimensions: 516 x 58 x 99 mm.

Warranty

2-year warranty
