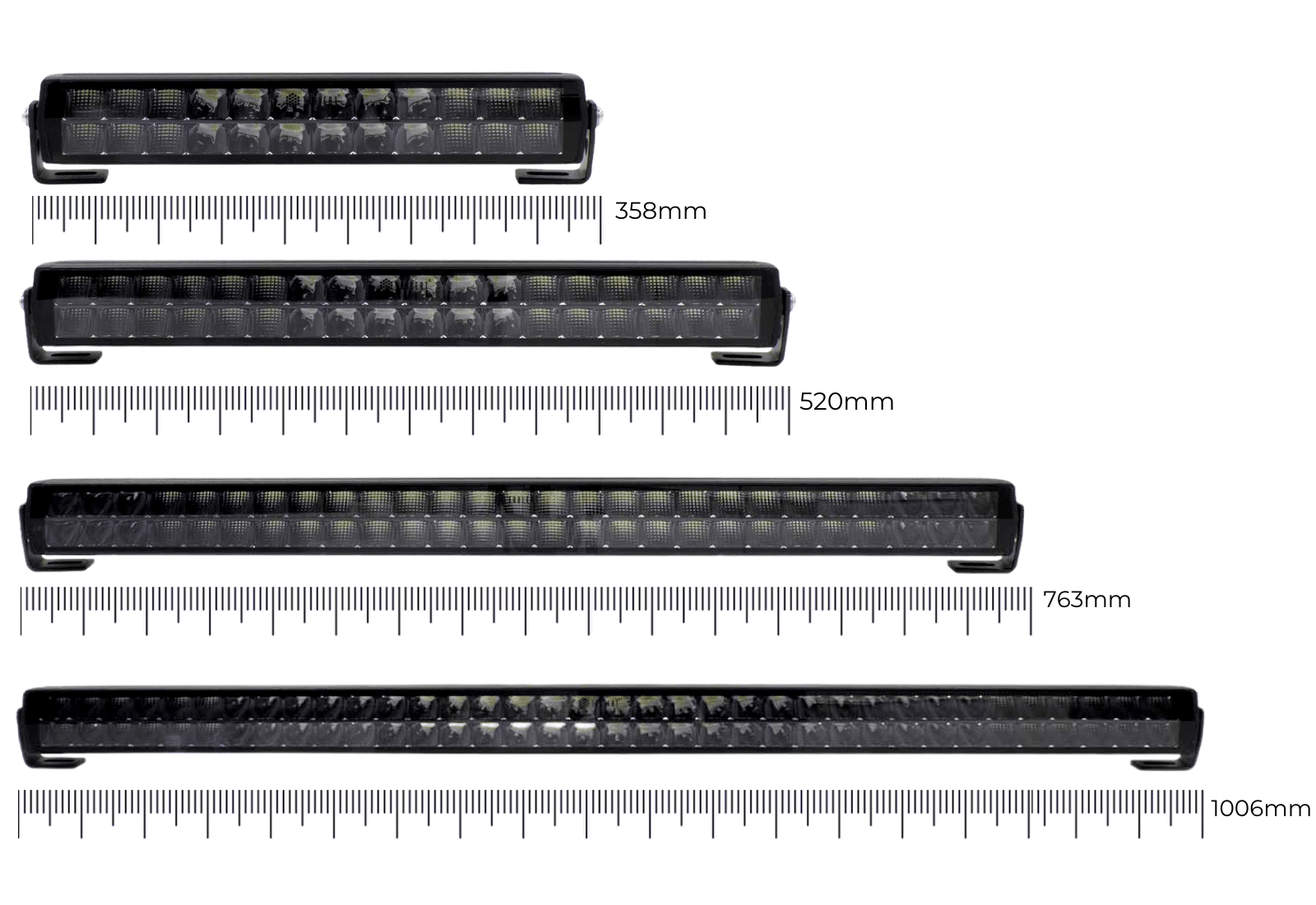

The TRALERT® Geminus Lightbars are available in four different sizes. Geminus 1 (360 x 58 x 52.5mm) , Geminus 2 (522 x 58 x 52.5mm), Geminus 3 (765 x 58 x 52.5mm) and Geminus 4 (1006 x 58 x 52.5mm).

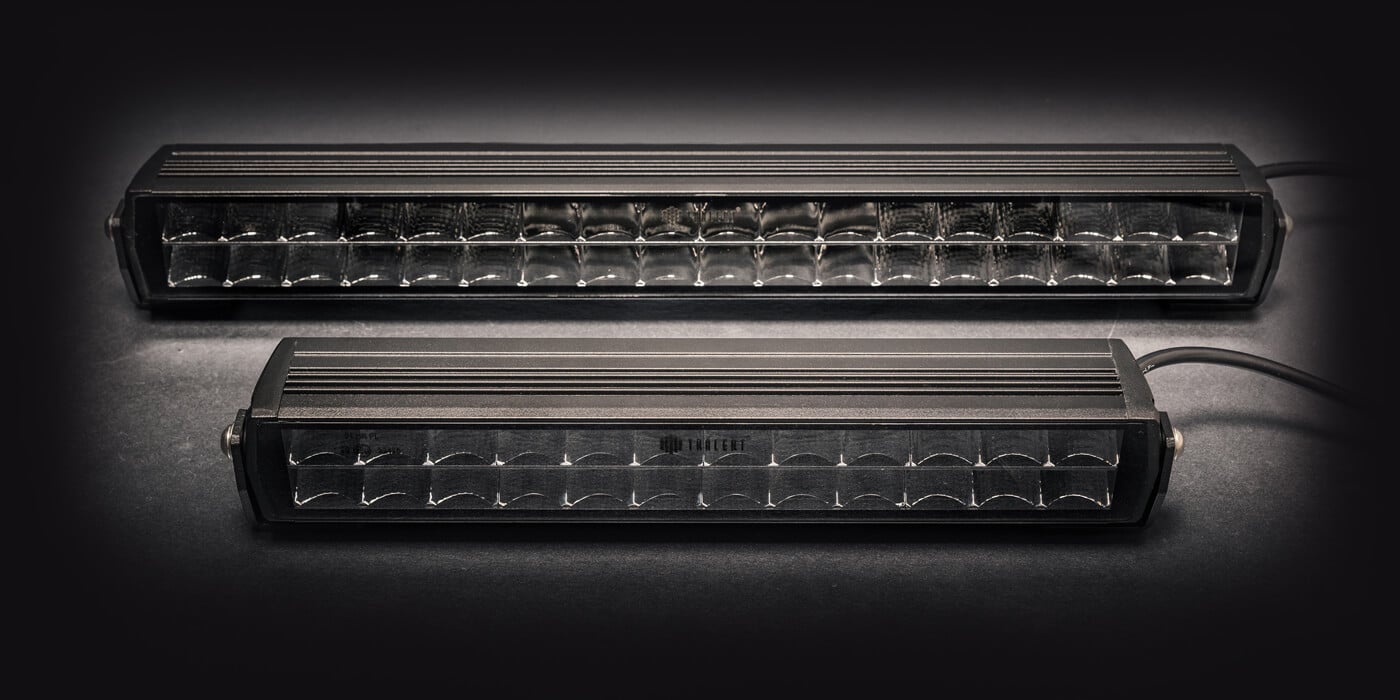

Two rows of LED, double the power.
Discover the Geminus.
All four versions of the Geminus Lightbar are equipped with a two-storey power LED combined with RFT lens technology. The power this generates is extreme.
The Geminus ‘360mm
The Geminus ‘522mm
The Geminus ‘765mm
The Geminus ‘1006mm
Choose the power of Geminus Lightbars.
Light distribution, sometimes you just need a little extra light in the dark. So choose between an R112 certified light beam, or the Xtreme light beam.
Which Lightbar is suitable for your vehicle?

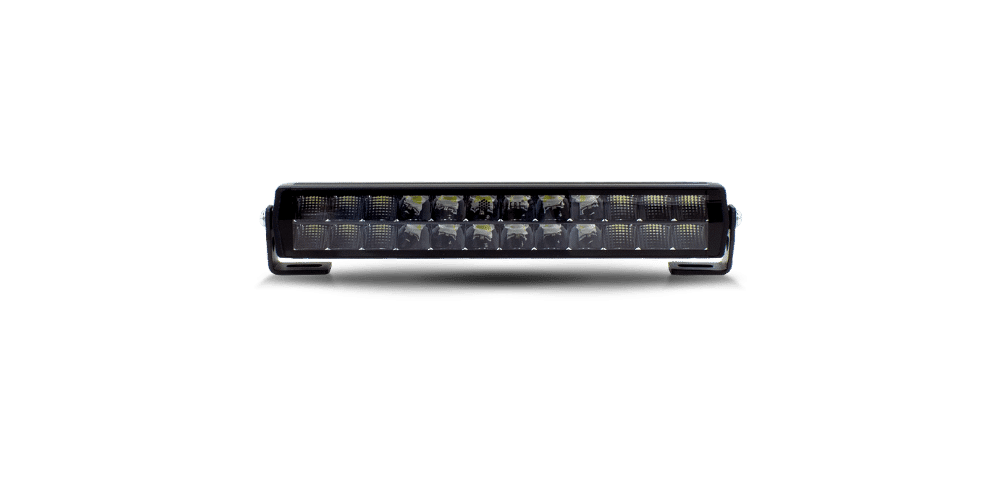

The Geminus ‘360mm
The most compact version of the ultra powerful Geminus Lightbar.
Materials
The housing, frame and mounting brackets are made of high quality aluminium;
The design of Geminus 1 includes aluminium heat conductors on the back for thermal management;
The aluminium parts are coated for extra protection against rust, corrosion and freezing;
Internally, it uses ETM (Electronic Thermal Management) for temperature control;
The lens protection, is made of Lexan Polycarbonate for scratch & damage protection;
The build quality is dust and waterproof and shock and UV resistant.
Light Pattern
Double set-up RFT lens for a very powerful and evenly distributed driving beam;
10,800 lumens combined with the RFT lens provide a light range of over 472 metres;
32.400 Lumen in Kombination mit dem RFT-Objektiv ergeben eine Leuchtweite von über 863 Metern;
Certificates
ECE-R112, High beam;
ECE-R10, so as not to interfere with your vehicle;
CE label, for the protection of the European buyer;
E-Certification, for official use on the road;
IP68, water and dust resistant;
IP69K, High-pressure jet resistant.
Voltage | Wattage
9 - 36 volts, multivoltage support;
Voltage protection, high voltage;
64 Watt power consumption.
Power consumption: 12 Volt / 4.0A - 24 Volt / 1.6A
Connection | dimension
Standard equipped with 40cm cable + Deutsch connector;
Optional: 3-metre cable;
Dimensions: 360 x 58 x 52.5mm.
Warranty
2-year warranty
The Geminus ‘522mm
The same technology but just one stroke bigger than the Geminus '360.
Materials
The housing, frame and mounting brackets are made of high quality aluminium;
The design of Geminus 2 includes aluminium heat conductors on the back for thermal management;
The aluminium parts are coated for extra protection against rust, corrosion and freezing;
Internally, it uses ETM (Electronic Thermal Management) for temperature control;
The lens protection, is made of Lexan Polycarbonate for scratch & damage protection;
The build quality is dust and waterproof and shock and UV resistant.
Light Pattern
Double set-up RFT lens for a very powerful and evenly distributed driving beam;

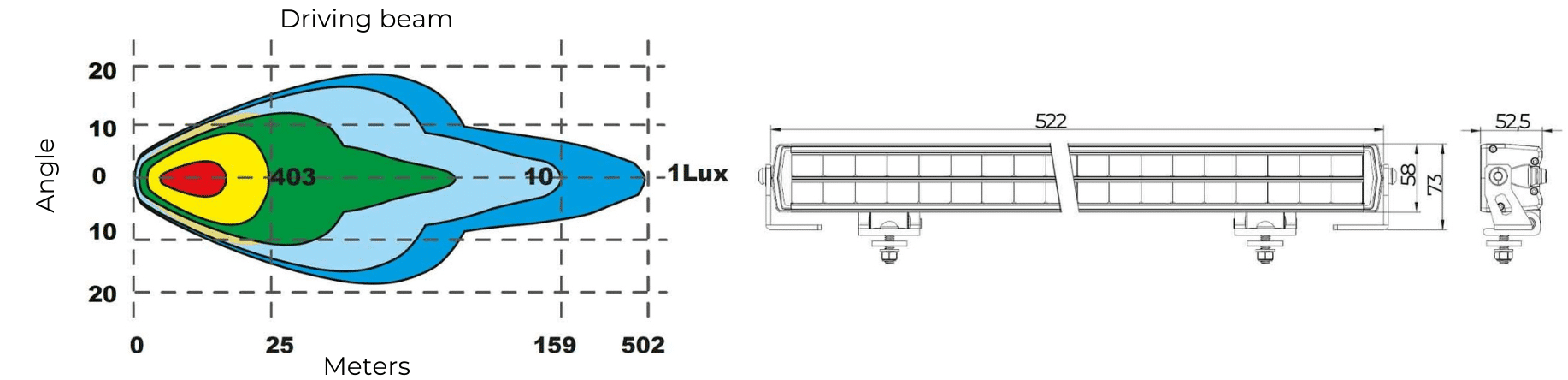

16.200 lumens combined with the RFT lens provide a light range of over 522 metres;
LED modules, 36 x 5 Watt, have a lifetime of 50,000+ hours.
Certificates
ECE-R112, High beam;
ECE-R10, so as not to interfere with your vehicle;
CE label, for the protection of the European buyer;
E-Certification, for official use on the road;
IP68, water and dust resistant;
IP69K, High-pressure jet resistant.
Voltage | Wattage
9 - 36 volts, multivoltage support;
Voltage protection, high voltage;
96 Watt power consumption.
Power consumption: 12 Volt / 6.2A - 24 Volt / 2.6A
Connection | dimension
Standard equipped with 40cm cable + Deutsch connector;
Optional: 3-metre cable;
Dimensions: 522 x 58 x 52.5mm.
Warranty
2-year warranty
The Geminus ‘765mm
For vehicles that want to go to the extreme.
Materials
The housing, frame and mounting brackets are made of high quality aluminium;
The design of Geminus 3 includes aluminium heat conductors on the back for thermal management;
The aluminium parts are coated for extra protection against rust, corrosion and freezing;
Internally, it uses ETM (Electronic Thermal Management) for temperature control;
The lens protection, is made of Lexan Polycarbonate for scratch & damage protection;
The build quality is dust and waterproof and shock and UV resistant.
Light Pattern
Double set-up RFT lens for a very powerful and evenly distributed driving beam;
24,300 lumens combined with the RFT lens provide a light range of over 673 metres;
LED modules, 54 x 5 Watt, have a lifetime of 50,000+ hours.
Certificates
ECE-R112, Main beam, (not for Xtreme);
ECE-R10, so as not to interfere with your vehicle;
CE label, for the protection of the European buyer;
E-Certification, for official use on the road;
IP68, water and dust resistant;
IP69K, High-pressure jet resistant.
Voltage | Wattage
9 - 36 volts, multivoltage support;
Voltage protection, high voltage;
270 Watt power consumption.
Power consumption: 12 Volt / 9.2A - 24 Volt / 4.6A
Connection | dimension
Standard equipped with 40cm cable + Deutsch connector;
Optional: 3-metre cable;
Dimensions: 765 x 58 x 52.5mm.
Warranty
2-year warranty
The Geminus ‘1006mm
The most powerful LED Lightbar available in the Geminus series.
Materials
The housing, frame and mounting brackets are made of high quality aluminium;
The design of Geminus 4 includes aluminium heat guides on the back for thermal management;
The aluminium parts are coated for extra protection against rust, corrosion and freezing;
Internally, it uses ETM (Electronic Thermal Management) for temperature control;
The lens protection, is made of Lexan Polycarbonate for scratch & damage protection;
The build quality is dust and waterproof and shock and UV resistant.
Light Pattern
Double set-up RFT lens for a very powerful and evenly distributed driving beam;

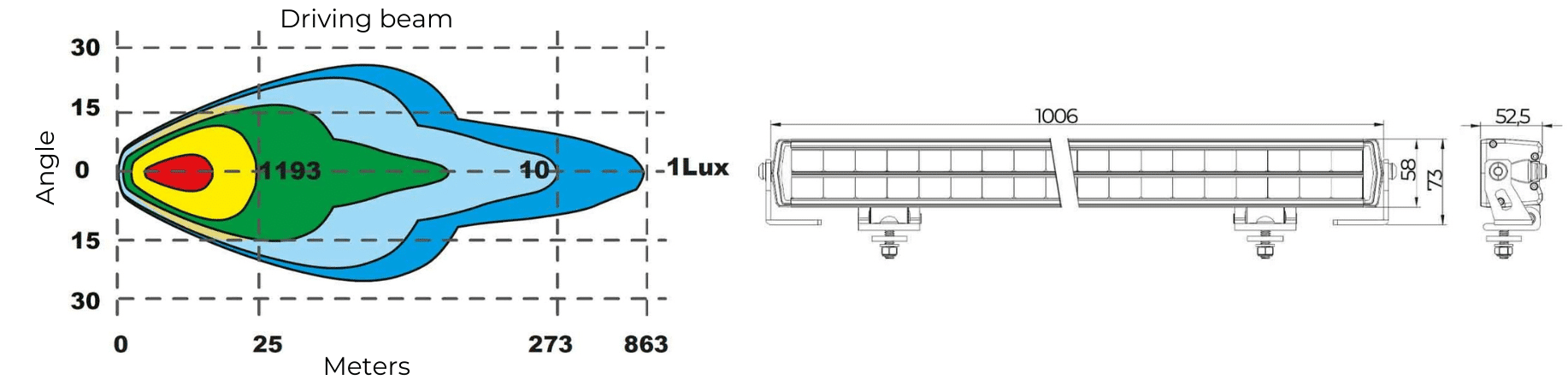

32,400 lumens combined with the RFT lens provide a light range of over 863 metres;
LED modules, 72 x 5 Watt, have a lifetime of 50,000+ hours.
Certificates
ECE-R112, High beam;
ECE-R10, so as not to interfere with your vehicle;
CE label, for the protection of the European buyer;
E-Certification, for official use on the road;
IP68, water and dust resistant;
IP69K, High-pressure jet resistant.
Voltage | Wattage
9 - 36 volts, multivoltage support;
Voltage protection, high voltage;
360 Watt power consumption.
Power consumption: 12 volts / 20A - 24 volts / 9.5A
Connection | dimension
Standard equipped with 40cm cable + Deutsch connector;
Optional: 3-metre cable;
Dimensions: 1006 x 58 x 52.5mm.
Warranty
2-year warranty
